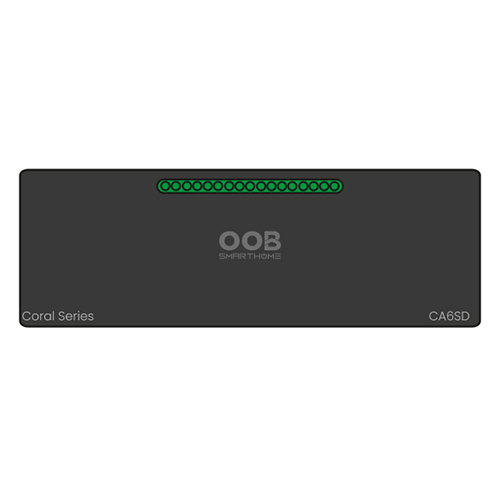

6 Normal Load 6A 2 Dimmable Point 6A Tradition Automation Switch

6 Normal Load 6A 2 Dimmable Point 6A Tradition Automation Switch Specification

Automation Grade
Tradition Automation

Response Time
<50 ms

Temperature Range
-10C to +55C

Number of Module
2 (with 2 dimmable points)

Rated Voltage
230V AC

Circuit Type
1-Way

Finish Type
Matte

Max. Current
6A Ampere (amp)

Mechanical Life
100,000 cycles

Protection Level
IP20

Product Type
Automation Switch

Material
Plastic

Insulation Resistance
>100 M at 500V DC

Contact Resistance
50 m initial

Max. Voltage
250V AC

Operating Temperature
-10C to +55C

Stoke
Standard

Size
Various available

Color
Black

Weight
Approx. 110g

Mounting Type
Concealed Box

Current Rating
6A

No Of Poles
Single Pole

Switch Function
Normal Load + Dimmable Points

Applicable Standards
IS/IEC 60669-2-1

Control Method
Manual & Remote Controlled

Compatible Load Type
Incandescent, LED, CFL

Wiring Type
Standard Terminal

Humidity
95% RH (non-condensing)

Panel Material
Fire Retardant Plastic

Power Consumption
<0.5W (standby)

Frequency
50/60 Hz

Dimming Technology
Phase Cut

6 Normal Load 6A 2 Dimmable Point 6A Tradition Automation Switch Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 6 Normal Load 6A 2 Dimmable Point 6A Tradition Automation Switch

Discover the acclaimed 6 Normal Load 6A 2 Dimmable Point 6A Tradition Automation Switch, a polished solution sought-after by dealers and distributors across India. Designed for optimum performance, this advanced switch features both normal load and dimmable points for versatile automation. Compatible with incandescent, LED, and CFL loads, it utilises phase cut dimming technology and operates via manual or remote control. Promotion now available-pick yours to experience low standby power consumption (<0.5W), premium fire-retardant plastic, and a sleek matte black finish. Engineered to IS/IEC 60669-2-1 standards, it boasts superb insulation, robust IP20 protection, and a mechanical life of up to 100,000 cycles, making it a preferred choice for wholesalers and suppliers.

Features & Plant Application: Precision and Versatility

This switch excels with its ability to control six normal load points alongside two dimmable points, catering to the unique demands of machine and plant environments. It supports a spectrum of compatible load types, including incandescent, LED, and CFL lighting. Perfectly suitable for industrial, commercial, or residential use, its robust construction, fire-retardant materials, and high insulation resistance ensure reliable, continuous operation even under challenging conditions. Choose this switch for efficiency, adaptability, and safety in power management.

Sample Policy, Certifications & Export Markets: Secure Value

We uphold a secure shipping policy, ensuring safe transit for all samples with a competitive outlay for potential buyers. Certified as per IS/IEC 60669-2-1 standards, our switch meets strict safety and quality regulations. Its market value is reinforced by its robust export across diverse markets including Asia, the Middle East, and Africa. Trusted by wholesalers and distributors, our product guarantees durability and compliance, making it a sought-after asset in the global automation market.

FAQ's of 6 Normal Load 6A 2 Dimmable Point 6A Tradition Automation Switch:

Q: How does the 6A Tradition Automation Switch operate in different environments?

A: The switch is designed to perform reliably in industrial, commercial, and residential settings, withstanding humidity up to 95% RH and temperatures from -10C to +55C. Its sturdy fire-retardant plastic and IP20 rating ensure safe operation under varying conditions.

Q: What loads and dimming technology is this automation switch compatible with?

A: This switch supports incandescent, LED, and CFL lighting loads. It utilizes phase cut dimming technology, enabling smooth adjustment of dimmable points and efficient control over your lighting environment.

Q: Where can this switch be installed and who should use it?

A: The switch is suitable for concealed box mounting and is ideal for use by manufacturers, wholesalers, dealers, distributors, and suppliers looking for high-performance automation solutions in India.

Q: What certifications does the 6A Tradition Automation Switch hold?

A: It is certified according to IS/IEC 60669-2-1 standards, ensuring that it meets the essential safety and performance criteria required for electrical switches in global markets.

Q: How can I benefit from using this automation switch in my project?

A: By incorporating this switch, you gain optimum energy efficiency, reliable performance with a 100,000-cycle mechanical life, and flexible control through both manual and remote methods-enhancing comfort and operational convenience.

Q: What is the process for obtaining a sample and how is shipping handled?

A: Samples can be requested through authorized channels; secure shipping is prioritized to guarantee product integrity during transit. Inquiries can be made to dealers, distributors, or directly to the manufacturer.
