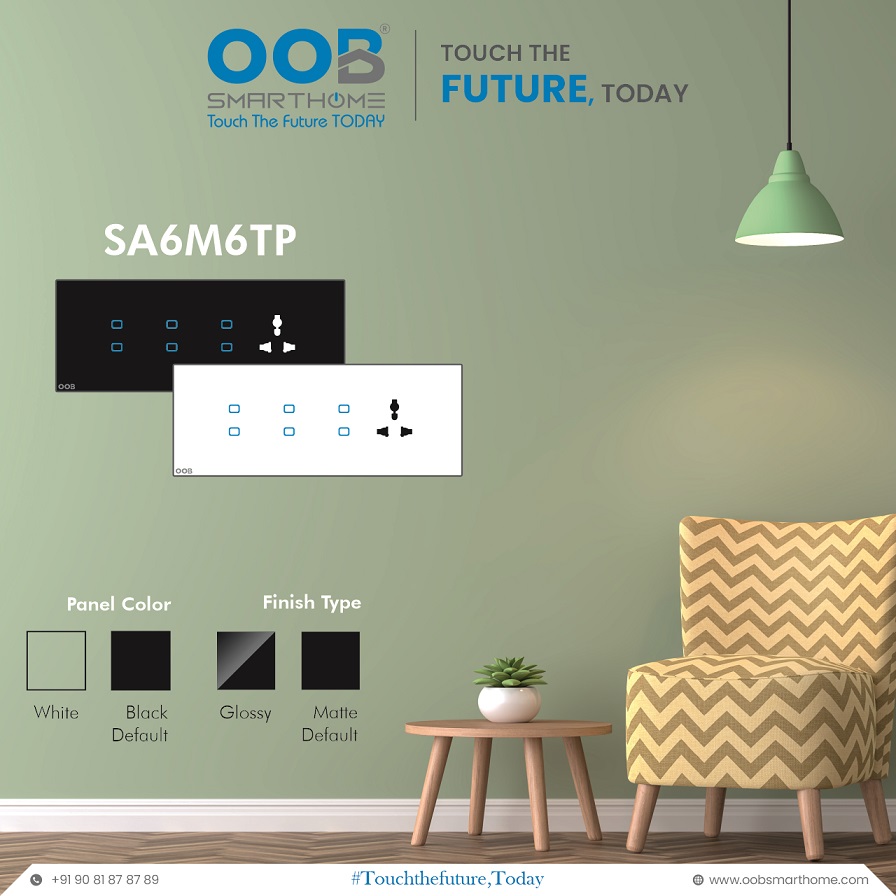

Sapphire Series - SA6M6TP

Sapphire Series - SA6M6TP Specification

Humidity %
Up to 95% RH (non-condensing)

Power Factor
>0.95

Shape
Rectangular

Overheating Protection
YES

Feature
Flame Retardant, Smooth Finish, Precision-Made Mechanism

IP Rating
IP20

Efficiency
>98%

Surface Finish
Glossy

Insulation Material
High Grade Polycarbonate

Operating Temperature
-5C to 55C

Connector Type
Screw Terminal

Mounting Type
Flush Mount

Product Type
Modular Switch

Application
Electrical Wiring / Power Distribution

Protection Level
High (Surge and Overload Protection)

Frequency (MHz)
50 Hz

Rated Voltage
240 V

Energy Consumption
Low

Output Type
Socket Output

Color
White

Dimension (L*W*H)
86 mm x 86 mm x 40 mm

Weight
0.50 kg

Phase
Single Phase

Size
6 Module

Input Voltage
110-240 V AC

No Of Poles
6 Pole

Connection Type
Terminal

Material
Polycarbonate (PC)

Model
SA6M6TP

Contact Material
Silver Alloy Contacts

Standards Compliance
ISI Marked, IS 3854

Mechanical Life
50,000 operations

Panel Cutout Size
47mm x 92mm

Flammability Rating
UL94 V-0

Sapphire Series - SA6M6TP Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

Sample Available
No

About Sapphire Series - SA6M6TP

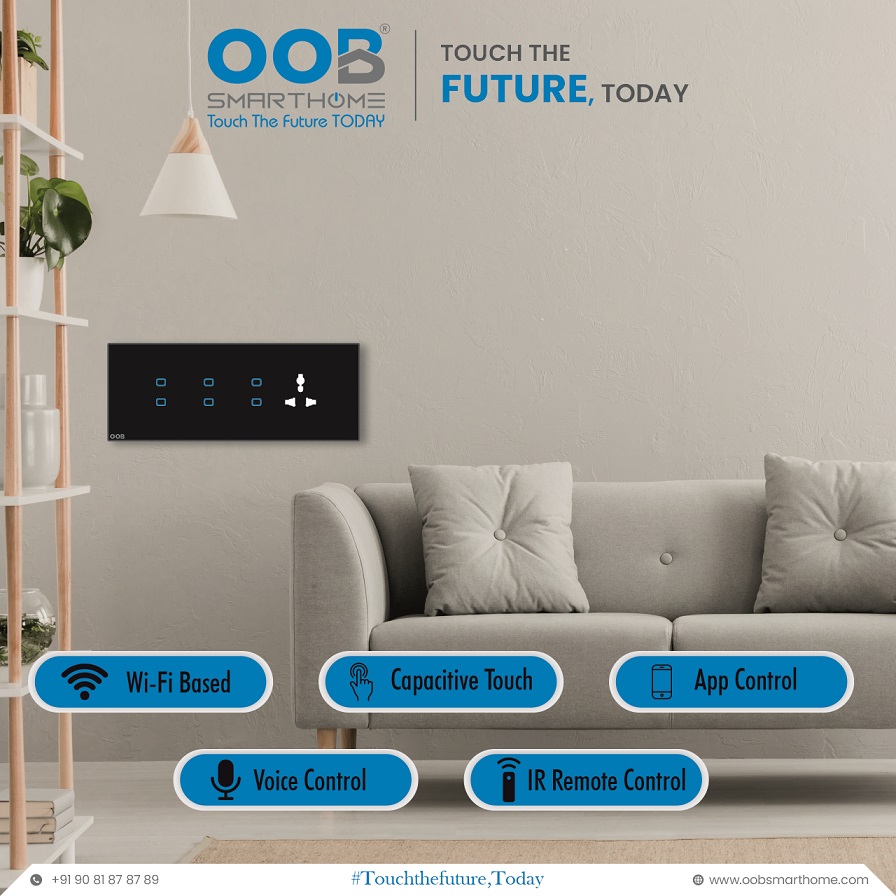

Sapphire series is a waterproof and fire-retardant glass panel programmed with capacitive touch technology that will replace your existing switchboards and give you smart functionalities to operate from anywhere, anytime. Your ordinary and simple switchboards will become extraordinary and smart in looks and operation.

1. Voltage: 90V to 230V

2. Frequency: 50Hz 60Hz

3. Remote: IR remote

4. Module size: As per standard

5. Weight: <1KG

6. Material: ABS or Acrylic, or Toughen Glass

7. Sound indication: Buzzer

8. Technology: IR, RF

9. Load capacity: Resistive Load: 350 watt | Inductive Load: 150 watt

10. Security: OOB Algorithm

11. Operation Temperature: -40 C to 110 C

12. Relative humidity: 5 to 95 %

Precision-Engineered for Reliability

The Sapphire Series - SA6M6TP stands out for its robust construction, using premium silver alloy contacts and high-grade polycarbonate insulation. Designed for longevity, this socket module offers up to 50,000 mechanical operations, ensuring long-term performance in both residential and commercial settings. Its flame-retardant, glossy surface is not only aesthetically pleasing but built to endure everyday wear and tear, making it a wise choice for modern power distribution.

High Safety Standards and Protection

With an ISI Mark and compliance to IS 3854, safety is a core feature of the SA6M6TP. The product provides high surge and overload protection, supported by an IP20 rating and UL94 V-0 flammability resistance. Overheating protection and efficient energy consumption round out its impressive safety credentials, safeguarding your installations even in challenging electrical environments.

FAQ's of Sapphire Series - SA6M6TP:

Q: How does the Sapphire Series - SA6M6TP enhance electrical safety in installations?

A: The SA6M6TP offers high surge and overload protection, a UL94 V-0 flammability rating, and is constructed from high-grade polycarbonate. Its ISI Marked status and compliance with IS 3854 standards ensure it meets rigorous safety requirements demanded by professional electrical environments.

Q: What are the recommended applications for the SA6M6TP module?

A: This model is ideally suited for electrical wiring and power distribution tasks in both residential and commercial settings. Its 6-pole configuration, high protection levels, and robust construction make it an excellent choice for new installations or upgrades that demand safety and efficiency.

Q: When should the SA6M6TP be considered in an electrical project?

A: Consider the SA6M6TP when projects require reliable multi-pole socket modules with enhanced protection, energy efficiency, and compliance with Indian and international safety standards. Its mechanical life of 50,000 operations supports high-frequency usage scenarios.

Q: Where can the SA6M6TP be installed for optimal performance?

A: This module is designed for flush mounting and fits a 47mm x 92mm panel cutout, making it suitable for electrical distribution panels and wall-mounted power outlets that need a compact yet efficient socket solution.

Q: What benefit does the silver alloy contact material provide?

A: Silver alloy contacts ensure superior electrical conductivity, reduce contact wear, and extend the lifespan of the socket. This results in efficient, stable power delivery with minimized maintenance needs.

Q: How is the SA6M6TP connected during installation?

A: It utilizes screw terminals for secure and consistent connections. The terminal type supports easy wiring during installation, ensuring reliable operation and simplified maintenance.

Q: What process is involved in mounting the SA6M6TP socket module?

A: The unit is designed for flush mounting: simply prepare a 47mm x 92mm cutout, secure the module using its designated terminal connections and mounting points, and ensure the wiring adheres to the provided safety and operational guidelines.
